Solar Street Light Manufacturers in Madhya Pradesh

Stand Alone Light

Minimum Power output of PV Module : 75 Wp
PV Module type : Crystalline Silicon Terrestrial Photovoltaic (PV) modules
Minimum effieiency of PV
Module (in %)
: 14
Battery voltage, Minimum (in Volts) : 12.8
Battery capacity, Minimum (in Ah) : 30
Battery type : Lithium Ferro Phosphate
Battery enclosure : External enclosure with IP65 Proection
Rating : 12 Watt
Total luminous flux : ≥ 1500 lm.
Luminous efficacy (i.e. system efficacy) : ≥ 125 lm/W.
Color Temperature : 5500 K to 6500 K
Overall total Efficiency of the Electronics : >/=90%
Ingress Protection (IP) for Optical and Control gear compartment : IP 66
Solar street light manufacturers

Semi Integrated Light

Power output of PV Module : ≥ 75 Wp at 16.4 ±0.2 Volt at STC
Battery capacity : ≥ 12.8 V (nominal), 30 Ah at STC (1 day autonomy)
Type of LED (Light source) : 25 Watt White LED type
Ingress protection : IP65 or better
Indicators on the system : Provided with 2 LED indicators: a green light to indicate charging in progress and a red LED to indicate deep discharge condition of the battery. The green LED glow only when the battery is actually being charged.
Nominal bore size of tube / Thickness of tube : 65 mm / 3.6 mm
Height of pole (in m) : 7
Battery box : Outside the luminaire enclosure in a vented, acid proof and corrosion resistant, hot dip galvanized metallic box (IP65 or better) with anti-theft locking arrangement for outdoor use
Solar street light manufacturers

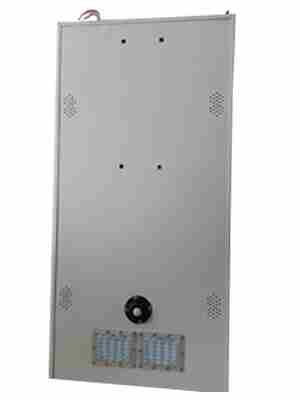

All In One Street Light

Minimum Power output of PV Module : 75 Wp
PV Module type : Crystalline Silicon Terrestrial Photovoltaic (PV) modules
Minimum effieiency of PV
Module (in %)
: 14
Battery voltage, Minimum (in Volts) : 12.8
Battery capacity, Minimum (in Ah) : 30
Battery type : Lithium Ferro Phosphate
Battery enclosure : External enclosure with IP65 Proection
Rating : 12 Watt
Total luminous flux : ≥ 1500 lm.
Luminous efficacy (i.e. system efficacy) : ≥ 125 lm/W.
Color Temperature : 5500 K to 6500 K
Overall total Efficiency of the Electronics : >/=90%
Ingress Protection (IP) for Optical and Control gear compartment : IP 66

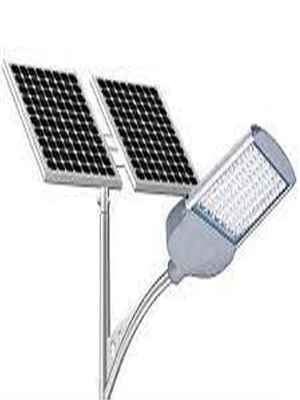

Solar Smart Light (RMS)

LED Rating (in Watts)/System
Wattage/Rated Power
: 120W
Luminaire System Efficacy
(Lumen/watt
: >/= 100 Lm/Watt
Ingress Protection (IP Rating) as per IS:10322 (Part 1):1982 latest : IP66
Warranty for free replacement (in years) : 2
Input operating Voltage range and frequency : 140 to 270 V olts AC at 50 Hz+/-2 with auto cutt off at below
120V
LED chip Efficacy : ≥130 Lm/Watt
Heat sink should be die-cast aluminium along with sufficient heat sink fins to dissipate heat effectively : Yes
Operating temperature range : -10 deg C to +55 deg C
Short circuit Protection : Yes
Over load protecton : Yes
Over Voltage protection : Yes
Reverse polarity : Yes
The luminaire shall be protected against surges and transients ( Internal) : >/=5KV
Protection of the entire housing (both LED section and driver section) as per IS:10322 (Part 1):1982 latest : IP66
Number of electronic control gear (power supplies) : 2 Nos.
Light Source : SMD LED Chip as per LM 80/IS16106
Length of ISI marked three core wire (shall be provided along with supply of material) : 50 cm
"Manufactures Name and and brand on the aluminium die cast body " : Engraved/Embossed
LED Make : OSRAM / NICHIA / CREE / SAMSUNG / SEOUL / LUMILEDS / PHILIPS / SYSKA / LUMENMAX / EVERLIGHT / EDISON / BRIDGELUX / NATIONSTAR / REFOND
LM 79 (Photometry) (Ref.IS:16106:2012) report from Central Government Lab /NABL/ILAC accrediated lab. Reports shall be furnish to the buyer / consignee on demand (LM-79 report shall have total lumen output, power, PF, Current in Amps, CRI & CCT etc., : Yes
LM 80 & TM 21 (Ref. IS:16105:2012) Report and Photo biological report for LED report from Central Government Lab /NABL/ILAC accrediated lab. Reports shall be furnish to the buyer / consignee on demand (LM-80 report shall have the Pohoto Biological re : Yes
Availability of test Report from Central Government Lab /NABL/ILAC accrediated lab to Indian Standrad IS:10322/part 5/sec-3/2012 and IS 16107 (Part 2/Sec 1) : 2012 : Yes
Seller shall furnish the Type test reports to the buyer / consignee on demand : Yes
