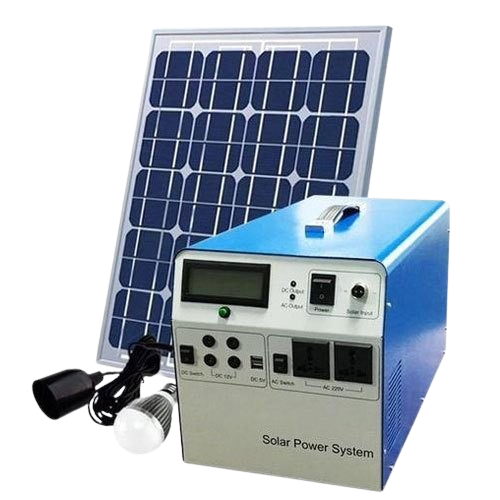

A Solar Home Lighting System is a compact, eco-friendly solution designed to provide reliable and sustainable lighting for residential use, especially in areas with limited or no access to electricity. This system typically includes one or more solar panels, a rechargeable battery, LED light fixtures, and a charge controller. During the day, the solar panel captures sunlight and converts it into electricity, which is stored in the battery. This stored energy is then used to power LED lights and other low-energy appliances at night.
Solar Home Lighting Systems are ideal for rural homes, emergency backup lighting, and environmentally conscious households. They can power basic lighting, mobile phone charging, fans, and small DC appliances, depending on the system's capacity. These systems are available in various sizes and configurations to suit different household needs.
One of the key benefits of solar home lighting is that it reduces dependence on grid electricity and fossil fuels, resulting in lower energy bills and a smaller carbon footprint. Additionally, the systems are easy to install, require minimal maintenance, and operate quietly.
| Product Code | Light House 05 | Light House 10 | Light House 20 | Light House 40 |
| Solar Panel (Poly) | 5Wp | 10Wp | 20Wp | 40Wp |
| Lithium Battery | Li-ion 7.4V 2.6Ah | Li-ion 7.4V 5.2Ah | Li-ion 12.8V 6Ah | Li-ion 12.8V 24Ah |
| LED Bulb | 0.5W LED Bulb x 3 Nos | 1W LED Bulb x 3 Nos | 3W LED Bulb x 3 Nos | 5W LED Bulb x 3 Nos |
| DC Fan | NA | NA | NA | 9W Table Fan x 1 Nos |
| Charger Controller Type | MPPT | MPPT | PWM/MPPT | PWM/MPPT |
| USB Mobile Charger 5V, 0.5A | Available | Available | Available | Available |
| AC Adaptor | Available | Available | NA | NA |
| Backup | 11HRs | 11HRs | 7HRs | 4HRs |
| Lumens/W | >50lm/W | >50lm/W | >70lm/W | >100lm/w |
| Standard Packing | 10Pcs | 10Pcs | 1Pcs | 1Pcs |
| Indication | Red & Green | Red & Green | Red, Green & Yellow | Red, Green & Yellow |
| Weight | 1.9KG | 2.6KG | 13KG | 25KG |
| Dimension | 330MMx228MMx85MM | 330MMx228MMx85M? | 330MMx228MMx85M? | 330MMx228MMx85M? |
| Wire | 3 Mtr. Wire with ON/OFF Switch | 5 Mtr. Wire with ON/OFF Switch | ||
| Protection | Battery Deep Discharge, Over O Charge protection, Open load Protection, Reverse Current Flow Protection, Short Circuit Protection and Temperature Compensation | |||
A Solar Home Lighting System is an eco-friendly, cost-effective solution designed to provide reliable lighting for homes using solar energy. It consists of key components including a solar panel, charge controller, battery, and energy-efficient LED lights. During the day, the solar panel captures sunlight and converts it into electricity, which is stored in the battery. This stored energy is then used to power lights and small appliances during the night or when sunlight is not available.
These systems are especially beneficial in remote or rural areas where access to grid electricity is limited or unavailable. They offer a clean alternative to traditional energy sources like kerosene lamps or diesel generators, helping to reduce indoor air pollution, health risks, and fuel expenses. Solar home lighting systems come in various sizes and configurations, from basic setups that power a few lights and phone chargers, to advanced systems capable of running fans, televisions, and more.
With low maintenance requirements, easy installation, and no monthly electricity bills, solar home lighting systems offer a sustainable solution for energy needs. They not only improve quality of life but also contribute to environmental conservation by reducing carbon emissions and dependence on fossil fuels. This makes them a smart investment for a greener future.
