Solar street lights are innovative outdoor lighting systems that harness solar energy to provide efficient and sustainable illumination. Each system typically includes key components such as solar panels, LED lamps, rechargeable batteries, and a smart controller. During daylight hours, the solar panels capture sunlight and convert it into electrical energy, which is stored in the batteries. As evening falls, sensors detect the drop in natural light and automatically activate the LED lamps using the stored energy. This seamless transition between charging and lighting ensures continuous operation without manual intervention. Solar street lights are particularly advantageous in remote or rural areas where traditional power infrastructure is lacking or expensive to implement. Their ability to function independently of the main power grid makes them an ideal solution for enhancing safety and visibility in off-grid locations. Additionally, these systems are highly eco-friendly, as they utilize renewable energy and significantly reduce carbon emissions compared to conventional street lights powered by fossil fuels. The use of LED technology further enhances energy efficiency by consuming less power and offering longer lifespans than traditional bulbs. Maintenance costs are also lower, as there are fewer components that require frequent replacement. Over time, solar street lights contribute to substantial savings on electricity bills for municipalities and organizations, making them a cost-effective investment. Many modern solar lighting systems are also equipped with motion sensors and dimming features to optimize energy usage based on activity levels in the area.
LED WATT | 9W/12W | 15W/20W | 24W/30W | 36W/40W | 50W/60W |
1 DAY AUTONOMY BATTERY Li-FeP04 SPV |
Li-FeP04 12.8V/12AH SPV 40W |
Li-FeP04 12.8V/18AH SPV 60W |
Li-FeP04 12.8V/24AH SPV 75W |
Li-FeP04 12.8V/36AH SPV 110W |
Li-FeP04 12.8V/48AH SPV 150W |
2 DAY AUTONOMY BATTERY Li-FeP04 SPV |
Li-FeP04 12.8V/18AH SPV 60W |
Li-FeP04 12.8V/24AH SPV 75W |
Li-FeP04 12.8V/30AH SPV 75W |
Li-FeP04 12.8V/42AH SPV 135W |
Li-FeP04 12.8V/60AH SPV 200W |
Solar semi-integrated street lights are a modern type of solar-powered lighting system where the solar panel, battery, and LED light are housed in a partially combined design. In this setup, the solar panel is mounted on top of the pole, while the battery and LED light are integrated into a single compact unit below. This design makes installation easy and efficient, while still allowing for better heat dissipation and maintenance. During the day, the solar panel charges the battery, and at night, the stored energy powers the LED light. These systems are energy-efficient, environmentally friendly, and ideal for lighting streets, pathways, and public areas without relying on the electricity grid.

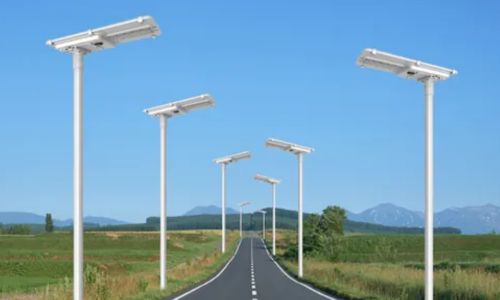

All-in-one solar lights are compact outdoor lighting systems that combine all the essential components—solar panel, LED light, battery, and controller—into a single, integrated unit. These lights are easy to install since they don’t require wiring or external components. During the day, the built-in solar panel charges the battery, and at night, the stored energy powers the LED light. They often come with motion sensors and automatic on/off features, making them energy-efficient and low-maintenance. All-in-one solar lights are ideal for streets, gardens, parks, and rural areas where grid power is unavailable or costly.
DESCRIPTION | 12W | 18W | 20W | 25W |
Product Code | WPS12WAIO | WPS18WAIO | WPS20WAIO | WPS25WAIO |
LED Wattage | 12W LED | 18W LED | 20W LED | 25W LED |
Solar Panel Mono | 40W Mono | 50W Mono | 60W Mond | 75W Mono |
Lithium Battery | 12.8V 12Ah | 12.8V 18Ah | 12.8V 18Ah | 12.8V 24Ah |
Charger Controller Type | MPPT | MPPT | MPPT | MPPT |
Luminous Flux/W | 120Lm to 150Lm | 120Lm to 150Lm | 120Lm to 150Lm | 120Lm to 150Lm |
Product Dimension | 775mm x 345mm x 60mm | 920mm x 345mm x 60mm | 1060mm x 345mm x 60mm | 1280mm x 345mm x 60mm |
Packing Dimensions | 965mm x 425mm x 150mm | 1110mm x 425mm x 150mm | 1110mm x 425mm x 150mm | 1465mm x 425mm x 150mm |
Weight | 10Kg | 12.8Kg | 15Kg | 17Kg |
40W | 50W | 60W | 80W | |
Product Code | WPS40WAIO | WPS50WAIO | WPS60WAIO | WPS80WAIO |
LED Wattage | 40W LED | 50W LED | 60W LED | 80W LED |
Solar Panel Mono | 100W Mono | 120W Mono | 150W Mono | 180W Mono |
Lithium Battery | 12.8V 36Ah | 12.8V 48Ah | 12.8V 54Ah | 12.8V 66Ah |
Charger Controller Type | MPPT | MPPT | MPPT | MPPT |
Luminous Flux/W | 120Lm to 150Lm | 120Lm to 150Lm | 120Lm to 150Lm | 120Lm to 150Lm |
Product Dimension | 1680mm x 345mm x 60mm | 1360mm x 560mm x 60mm | 1550mm x 560mm x 60mm | 1840mm x 560mm x 60mm |
Packing Dimensions | 1865mm x 425mm x 150mm | 1550mm x 640mm x 150mm | 1740mm x 620mm x 150mm | 2030mm x 620mm x 150mm |
Weight | 25Kg | 27Kg | 32Kg | 33.6Kg |
Indications | Green Indication for Battery charging & Battery full, Red Indication for Battery Low | |||
Standard Dimming Operation | Light will glow in full bright mode for first 4 Hrs., After 4Hrs. Light will dim to 33% Power in case light is supplied with motion sensor, then if any motion is detected in 12M area around the light ten light will glow in full mode for 2 min and after that it will again come to 33% power |
A solar street light is a smart, energy-efficient lighting solution that uses solar power to illuminate streets, pathways, parks, and other outdoor areas. It operates using a solar panel that captures sunlight during the day and converts it into electrical energy, which is stored in a rechargeable battery. At night, the system automatically powers a high-efficiency LED lamp using the stored energy. Solar street lights are wireless, easy to install, and require minimal maintenance. They are an eco-friendly alternative to conventional street lighting, reducing dependency on the power grid and lowering environmental impact.
